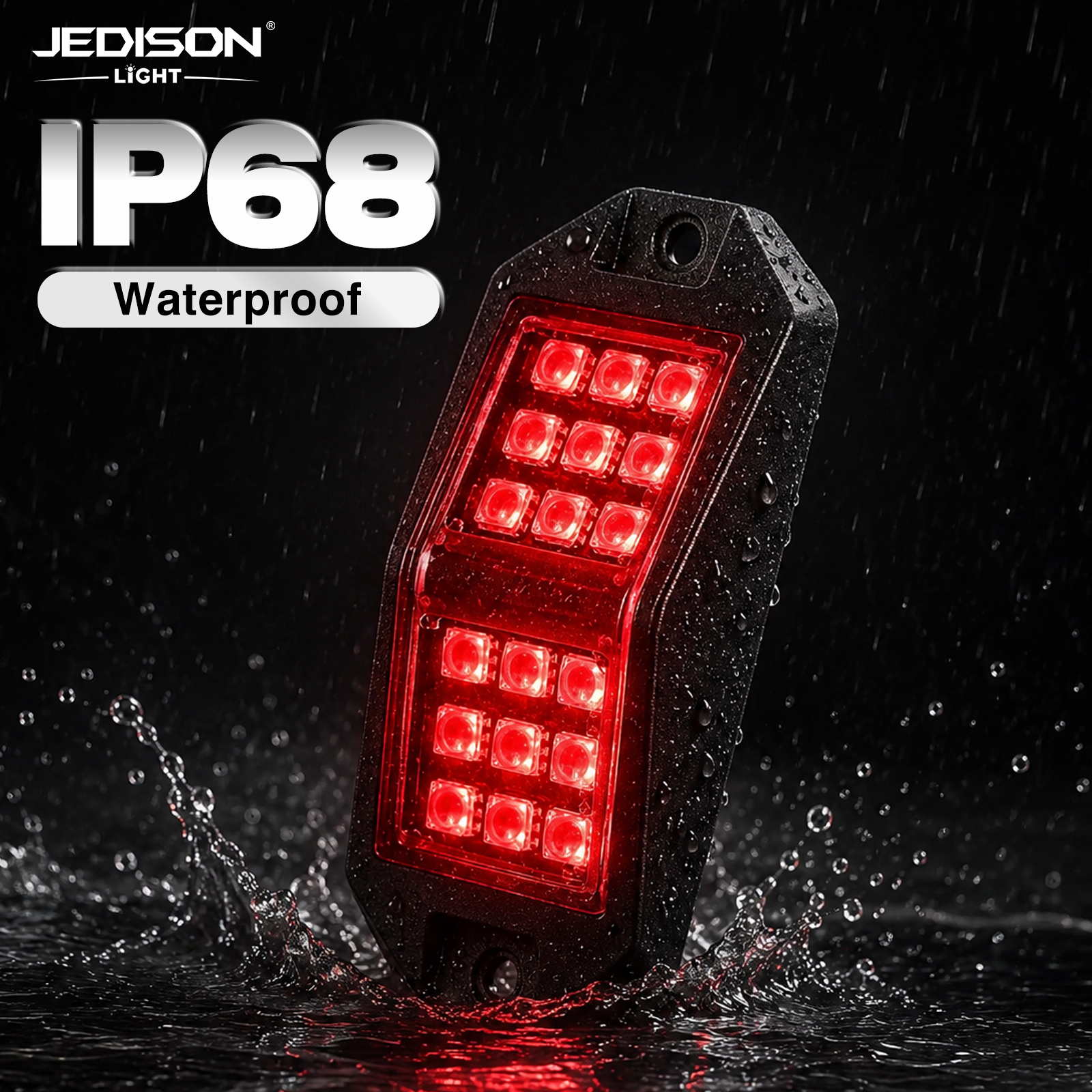

| Product Highlights ✅Each pod is equipped with 18 pieces high‑efficiency SMD LED beads. 180‑degree wide illumination angle covers vehicle chassis, wheel arches and surrounding ground. Greatly improves visibility for night driving and off‑road travel, meanwhile acts as warning light to remind surrounding vehicles. ✅6063 aviation‑grade aluminum base achieves fast heat conduction. Effectively reduces working temperature of LED chips, slows down light decay, extends whole service life of rock lights. Hard PC outer housing provides strong impact resistance against gravel and stone hits during off‑road driving. ✅Adopts fully sealed integrated sealing process, reaches IP68 waterproof and dustproof grade. Fully resists heavy rain, mud splashes, sand, puddle water immersion. Can work stably under harsh outdoor off‑road scenarios. ✅Comes with quick‑disconnect waterproof connectors. Tool‑free installation and removal. No complicated wiring modification needed.
Universal design fits most off‑road vehicles, trucks, boats and modified cars. Compatible with multi‑model and multi‑year vehicles. |
|
| Item | Specification |
|
Model No.
|
JDS-2016A
|
|
RGB Version
|
16 million colors full color adjustable/supports gradient/flash breathing light and other dynamic modeswith 5050 RGB LED chips
|
|
RGBW Version
|
5050 RGBW 4-in-1 LED chips added pure white channel purer white light and higher color rendering index
|
|
Working Voltage
|
12V/24V
|
|
Rated Current Per Light
|
0.5A ± 0.1A
|
|
Rated Power
|
9W ± 0.5W
|
|
Core Material
|
Die-cast aluminum alloy housing + thickened PC lens + Flame‑retardant PVC insulated wire
|
|
IP Rating
|
IP68
|
|
Beam Angle
|
180° wide angle lighting,no dark area coverage
|
|
Brightness (Lumen)
|
≥800LM per light≥1200LM for high brightness version
|
|
Color Temperature Range
|
Cool white 5000-6500K,warm white 3000-4000K
|
|
LED Chip Specification
|
RGB: 5050 RGB LED chips; RGBW: 5050 RGBW LED chips
|
|
Service Life
|
≥30000 hours
|
|
Working Temperature
|
-40℃ ~ +85℃
|
|
Protection Performance
|
Shockproof, impact resistant,UV resistant
|
|
Control Method
|
APP control, remote control,music sync trigger (for RGB/RGBW versions)
|
|
Cable Length Specification
|
Standard 3 meters extension cable,customizable length
|
|
Application Scope
|
Car/Off-road/Truck chassis ambient light,UTV/ATV all-terrain vehicle, marine deck light, outdoor courtyard rockery landscape
light,swimming pool underwater light,industrial equipment warning light |
|
Customization Service
|
Customizable LED color, cable length,control protocol, logo printing,packaging customization
|
|
Industry Certification
|
CE,FCC,RoHS international safety certifications
|
|
After-sales Service
|
12 months free warranty, lifetime maintenance service
|
